Overview
Thermasheet floor-fixed boards provide a lightweight, insulated and stable substrate for tiled floors and underfloor-heating applications. Select the fixing method to suit the supporting floor.
Installation steps
-
1
CONTINUOUS SUPPORT
Floor-fixed boards must be continuously supported by a stable substrate unless specifically engineered otherwise.

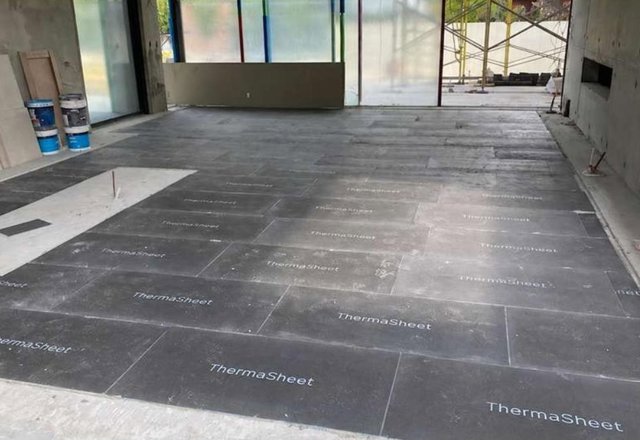

Thermasheet floor boards installed over a prepared floor -
2
BED BOARDS INTO SUITABLE ADHESIVE
For concrete floors, use a suitable tile adhesive spread with a notched trowel. For timber or cement-sheet floors, use Thermasheet MSP Sealant together with TS-Fixings (washers and screws).
-
3
UNDERFLOOR HEATING
Install the heating system over the cementitious face in accordance with the heating and tile-adhesive manufacturers' instructions.

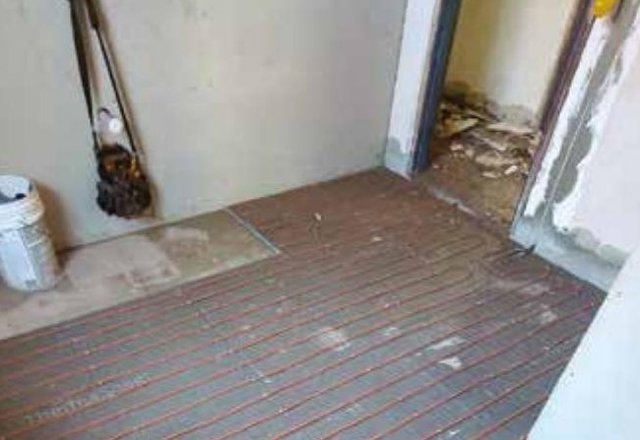

Underfloor heating over 10 mm Thermasheet on a slab -
4
SLOPED BOARDS
Sloped boards are also available with a 1:80 fall for balconies, wet rooms and alfresco areas where fall is required before tiling.
